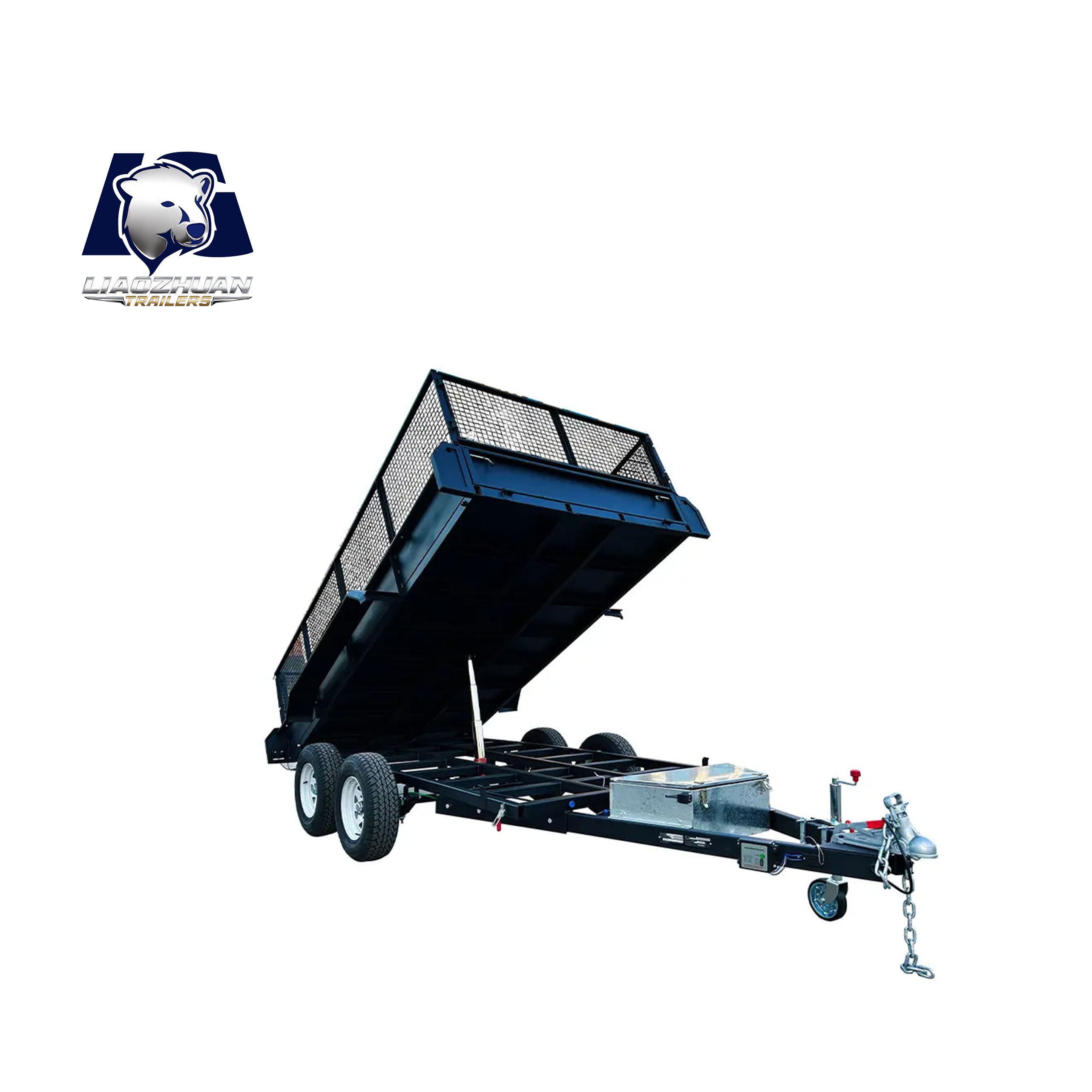

13x6 液压翻斗车 镀锌箱式拖车 4500公斤 ATM(电动刹车)

Trailer size 13 'x6' 4T
Drawbar 1500mm100x50x5 mm
Internal dimensions 3000 mm x1500 mm
Surface treatment spray paint
Color black
Lamp LED ADR lamp
Axis 50mm2t Solid axis *2
The specified load 4500 kg
tare
Guide wheel 10"
Fully welded yes
Chassis frame 70*50*3.75 square tube
Floor 2.5 pattern
Bar plate 2.5 pattern
Mud tile 2.5 pattern
Hydraulic cylinder 4 knots 1200 stroke (Max 3T)
Side 300mm 2.5mm fold
Cage 600 mm 30x30 mm
Plate storage 9
Beam 3.2 High strength bending parts
Wheels and tires 215R15C light truck
Brake 10 inch electric drum brakes
